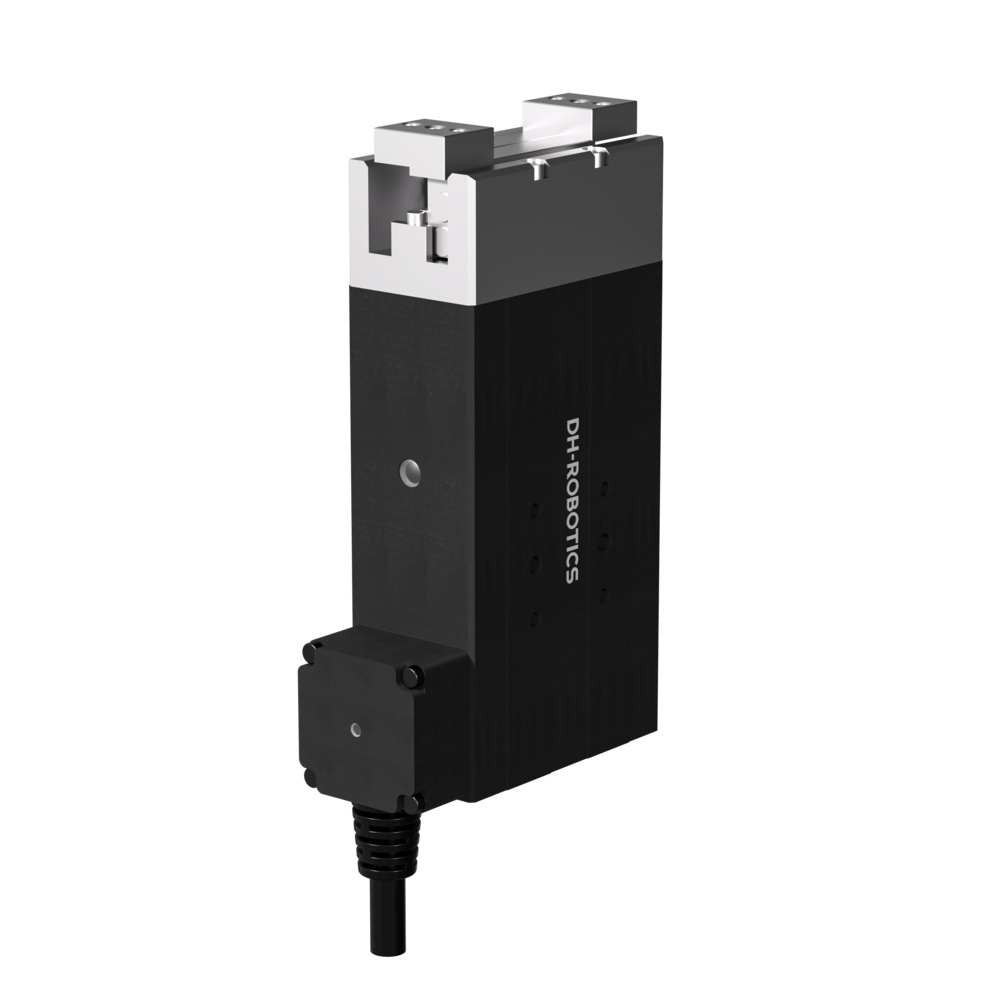

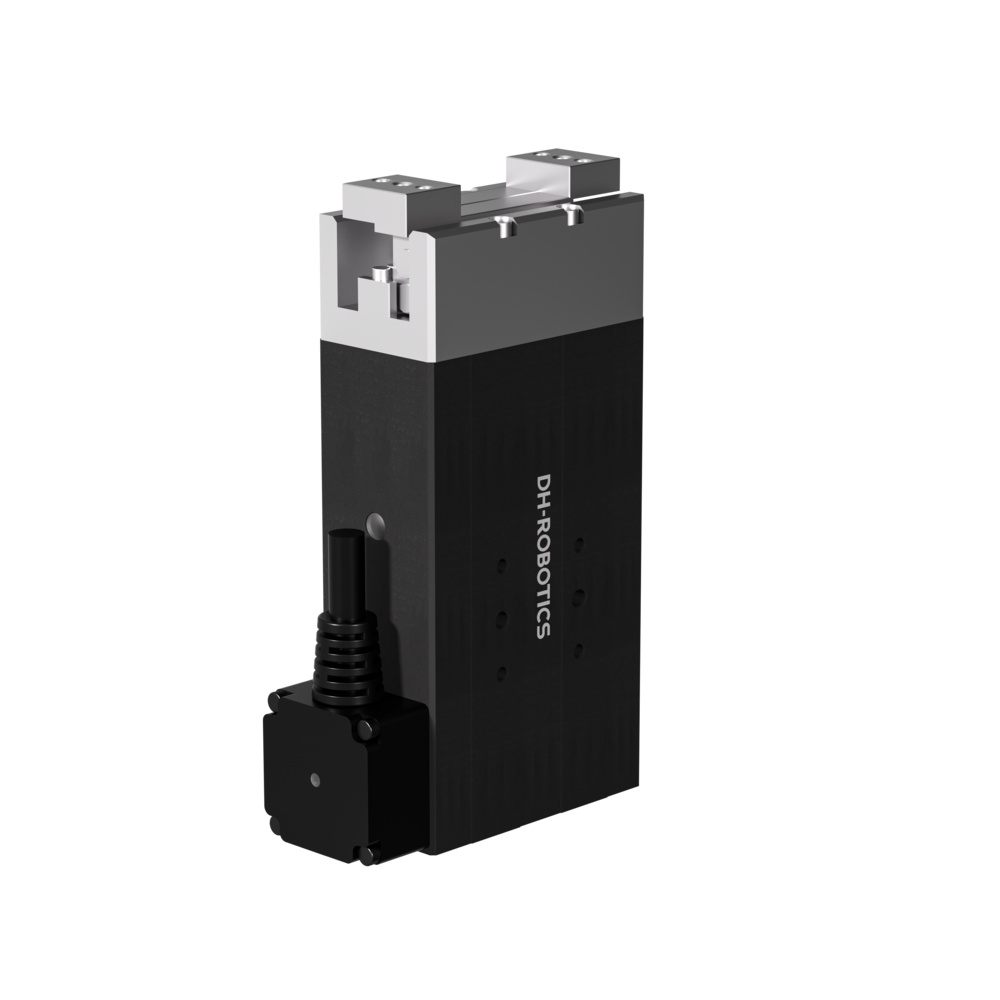

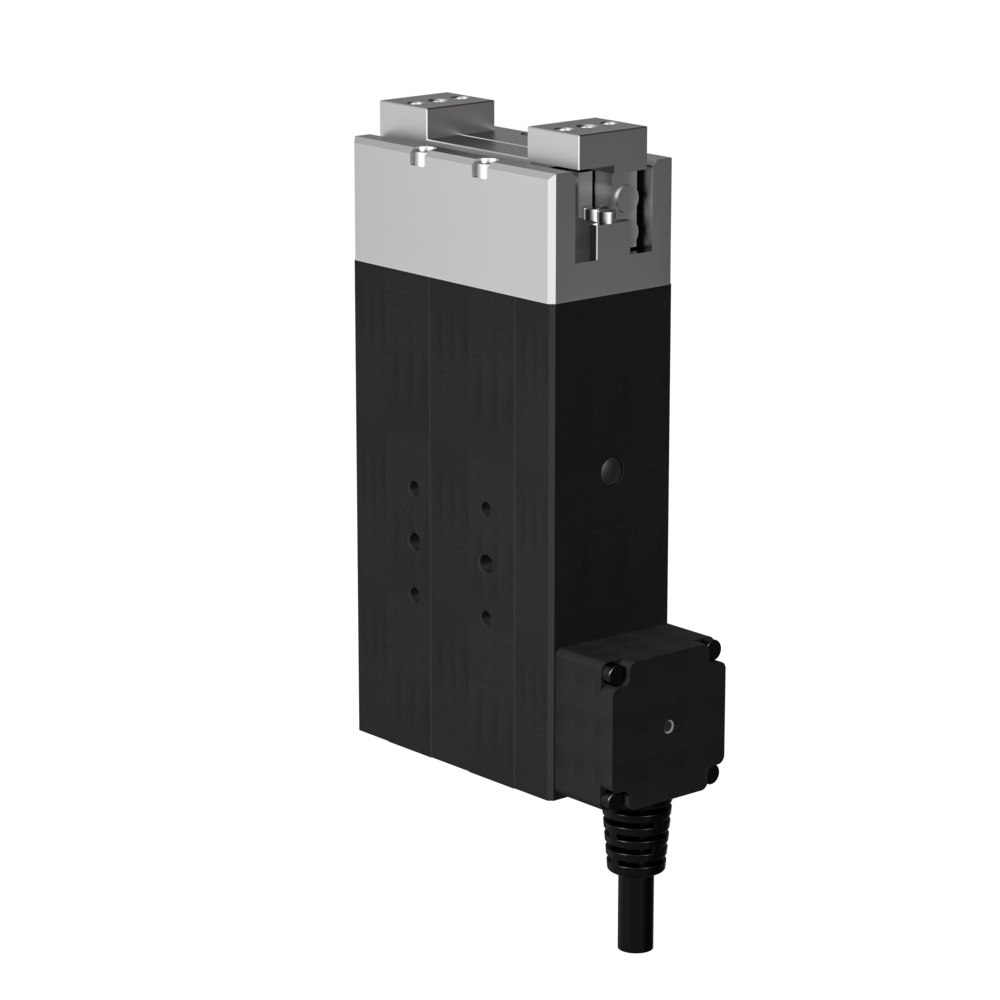

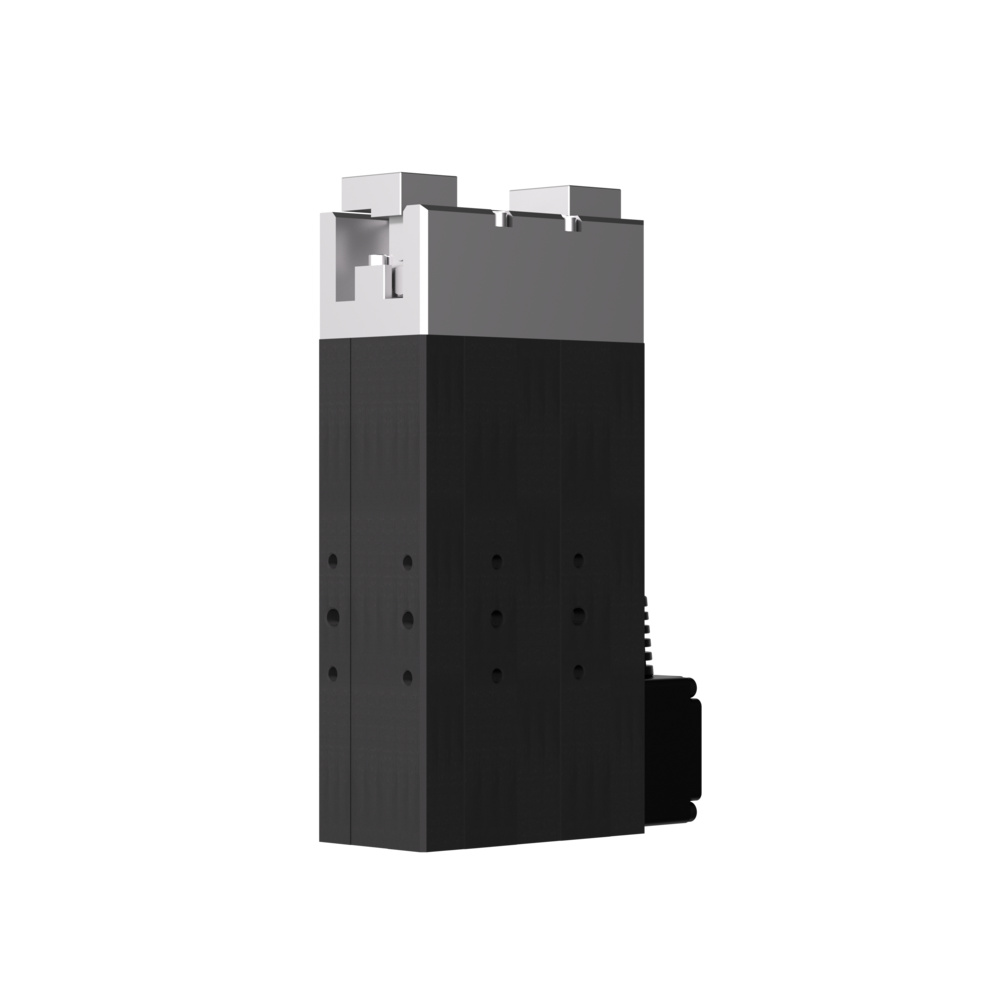

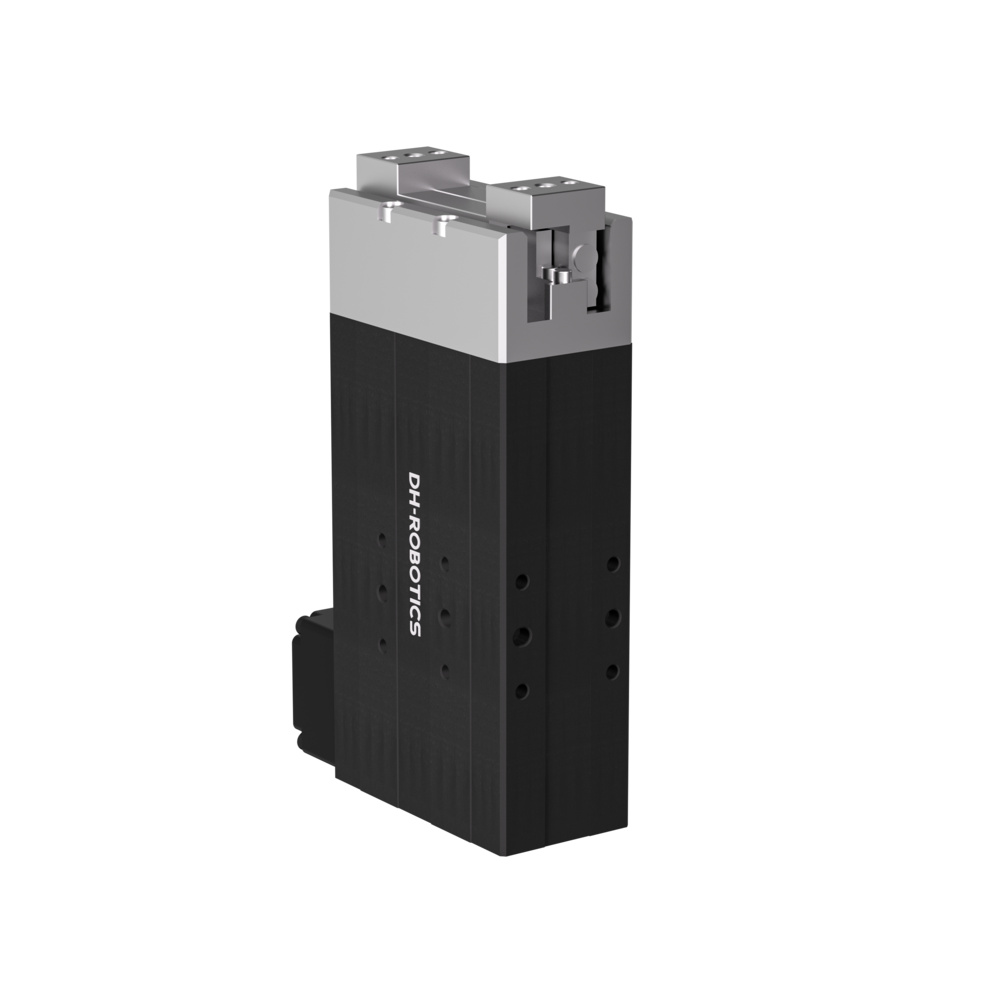

PGEA-100-40-O

PGEA Series

Slim-type Electric Parallel Gripper

Integrated design
Interchangeable direct-output cable design
Drop detection
Adjustable parameters
Intelligent feedback
Replaceable Fingertip
IP40
-30℃ low temperature operation
CE certification
FCC certification
RoHS certification

€ 650,00 excl. VAT

PGEA Series

The PGEA-100-40 series from DH-Robotics is a slim-type electric micro gripper, a comprehensive upgrade from our hot-selling PGE series. Compared to the previous generation, it offers more affordable pricing and shorter lead times (as fast as 10 days). Additionally, we have simplified the selection with two controller options: the external controller and the integrated controller. This small electric gripper maintains precise force control and fast response. Meanwhile, it features adjustable cable direction and added brake functionality, delivering a more reliable performance and higher production efficiency.

Product Features

Compact Size & Flexible Installation
With a compact structure, the small electric gripper features the thinnest size of 18mm, making it perfect to work in a tight space. Additionally, it supports at least five flexible installation methods to meet the demanding needs of clamping tasks.

High Working Speed
Our electric micro gripper achieves an impressive opening and closing time of 0.2 seconds, ensuring rapid and precise clamping to meet the high-speed demands of modern production lines. This device balances speed and stability, offering reliable performance in automation applications.

Precise Force Control
Powered by our advanced driver design and driving algorithm compensation, our small electric gripper enables continuous and precise force adjustments to accommodate various industrial requirements. With a force repeatability of 0.1N, our device ensures consistent and reliable performance, perfect for handling delicate and high-precision tasks.

Specifications

Main Specifications

Gripping force (per jaw) 30 - 100 N
Stroke 40 mm
Recommended workpiece weight 2 kg
Opening/Closing time 0.5 s / 0.5 s
Repeat accuracy (position) ± 0.02 mm
Noise emission ＜ 50 dB
Weight 0.6 kg with or without brake
Driving method Rack and Pinion Crossed Roller Guide
Communication interface Standard: Modbus RTU (RS485)、 Digital I/O (2 inputs 2 outputs)Optional: TCP/IP、 USB2.0、 CAN2.0A、 PROFINET、 EtherCAT
Rated voltage 24 V DC ± 10%
Nominal & Max. current 0.3 A (Rated) 1.2 A (Peak)
Max power 30W
