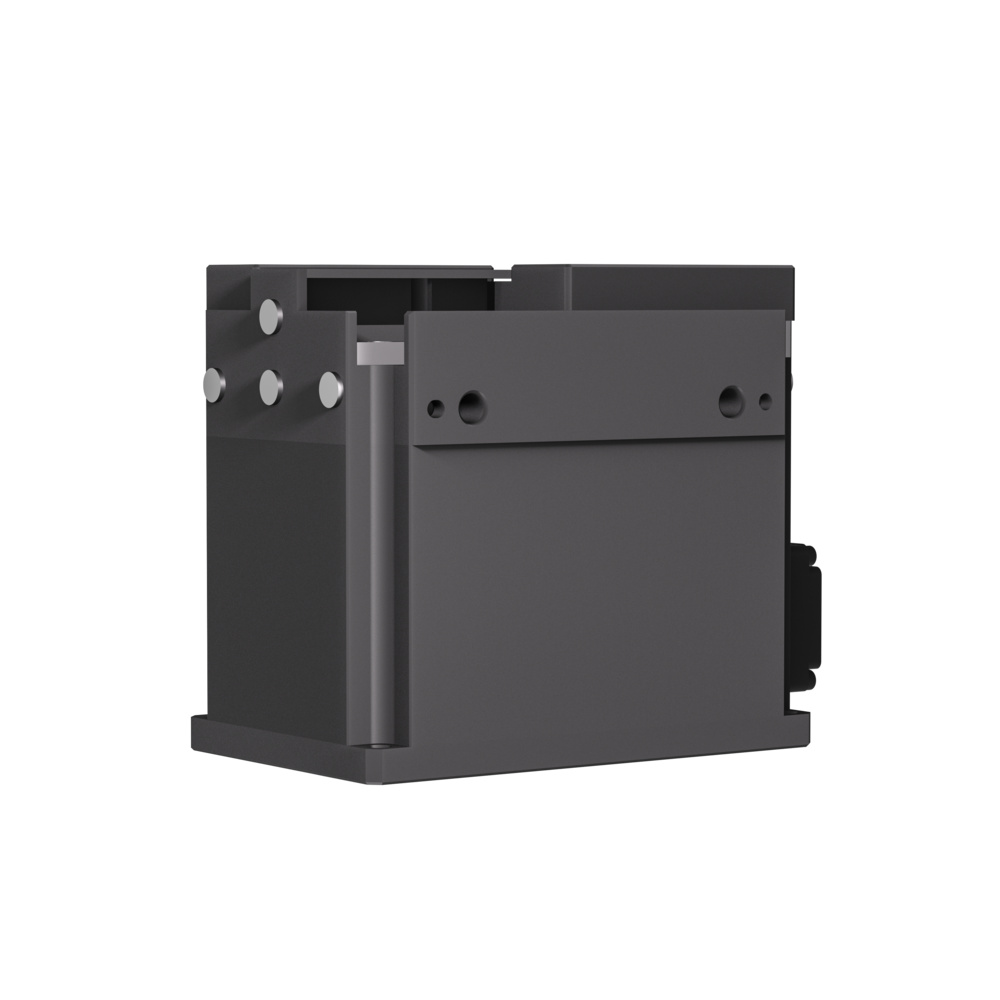

PGIA-140-80-W
PGIA Series
Industrial Electric Parallel Gripper
- Long Stroke
- High Protection Level
- High load
- Integrated design
- Adjustable parameters
- Self-locking
- Intelligent feedback
- Replaceable Fingertip
- IP54
- CE certification
- FCC certification
- RoHS certification
€ 1.167,00 excl. VAT
Specifications
Main Specifications
-
Gripping force (per jaw) 40-140 N
-
Recommended workpiece weight 3 kg
-
Stroke 80 mm
-
Repeat accuracy (position) ± 0.02 mm
-
Weight 1 kg
-
Size 97 mm x 62 mm x 86 mm
-
Noise emission ＜ 50 dB
-
Driving method Rack and Pinion Crossed Roller Guide
-
Communication interface Standard: Modbus RTU (RS485)、 Digital I/O (2 inputs 2 outputs)Optional: TCP/IP、 USB2.0、 CAN2.0A、 PROFINET、 EtherCAT
-
Rated voltage 24 V DC ± 10%
-
Rated current 0.7 A (Rated) / 1.6 A (Peak)
-
Max power 40 W
Environment & Certification
-
IP class IP 54
-
Recommended environment 0~40°C, <85% RH
-
Certification CE，FCC，RoHS
Request a Quote
