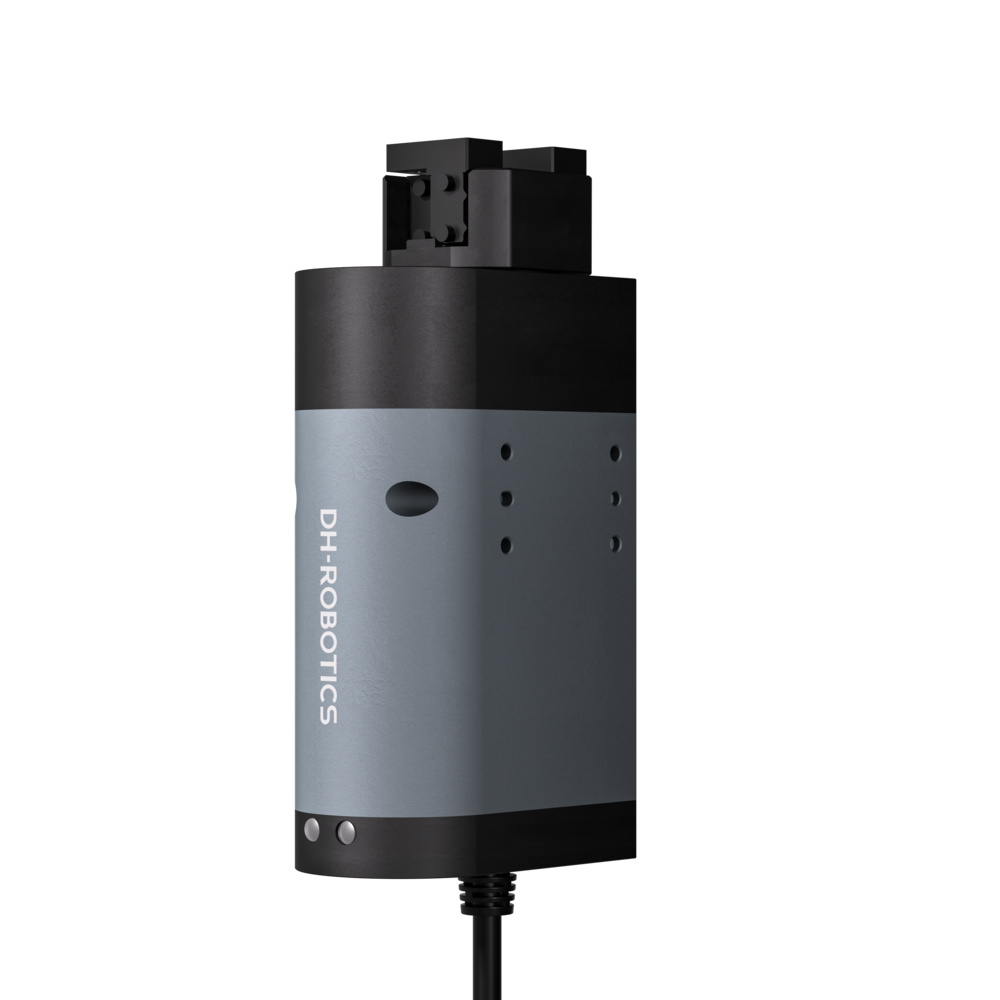

RGI-100-14-O
RGI Series
Rotary Electric Gripper
- Gripping & Infinite Rotation
- Compact | Double Servo System
- High Repeat Accuracy
- Integrated design
- Adjustable parameters
- Intelligent feedback
- Replaceable Fingertip
- IP20
- Low temperature operation
- CE certification
- FCC certification
- RoHS certification
€ 1.400,00 excl. VAT
Specifications
Main Specifications
-
Gripping force (per jaw) 30-100 N
-
Stroke 14 mm
-
Rated torque 0.5 N·m
-
Peak torque 1.5 N·m
-
Rotary range Infinite rotating
-
Recommended workpiece weight 1.28 kg
-
Max. rotation speed 2160 deg/s
-
Repeat accuracy (swiveling) ± 0.05 deg
-
Repeat accuracy (position) ± 0.02 mm
-
Opening/Closing time 0.60 s / 0.60 s
-
Weight 1.28 kg
-
Size 158 mm x 75.5 mm x 47 mm
-
Communication interface Standard: Modbus RTU (RS485), Digital I/O (2 inputs 2 outputs)Optional: TCP/IP, CAN2.0A, PROFINET, EtherCAT
-
Rated voltage 24 V DC ± 10%
-
Rated current 1.0 A
-
Peak current 4.0 A
Environment & Certification
-
IP class IP 20
-
Recommended environment 0~40°C, under 85% RH
-
Certification CE，FCC，RoHS
Request a Quote
