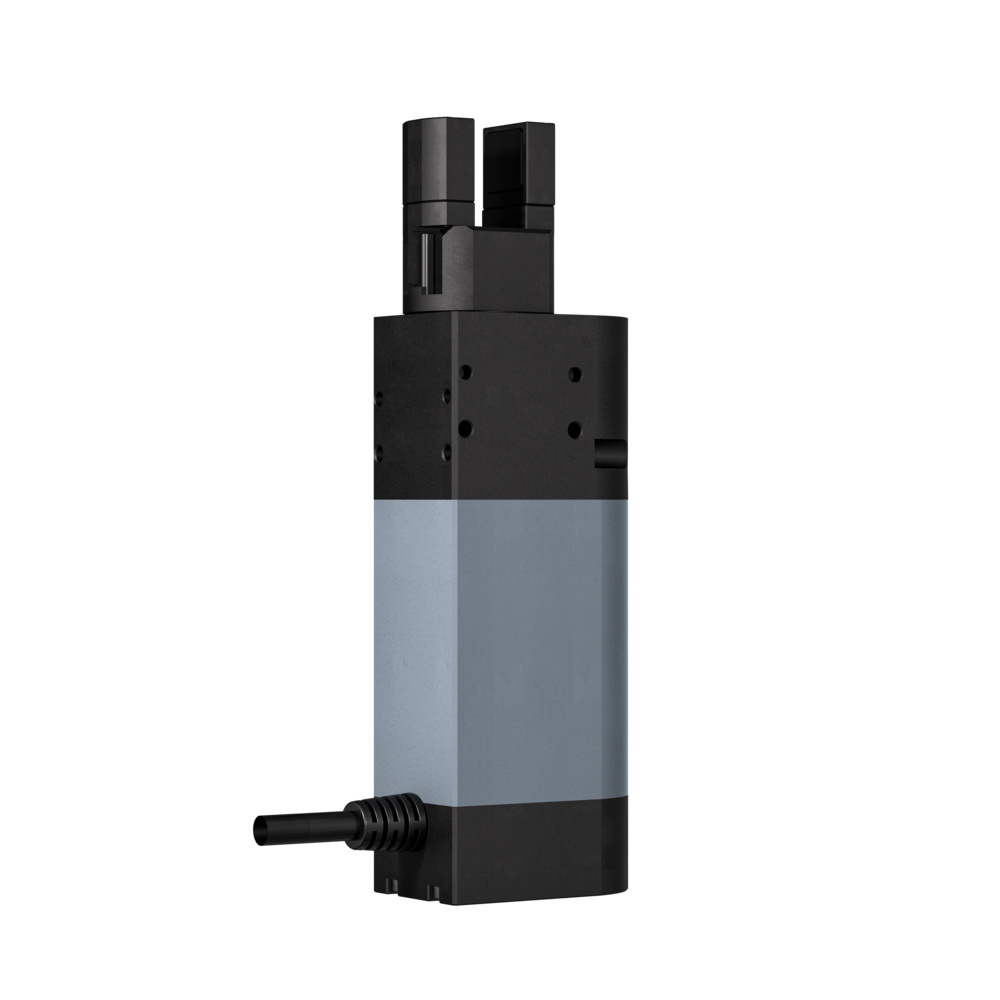

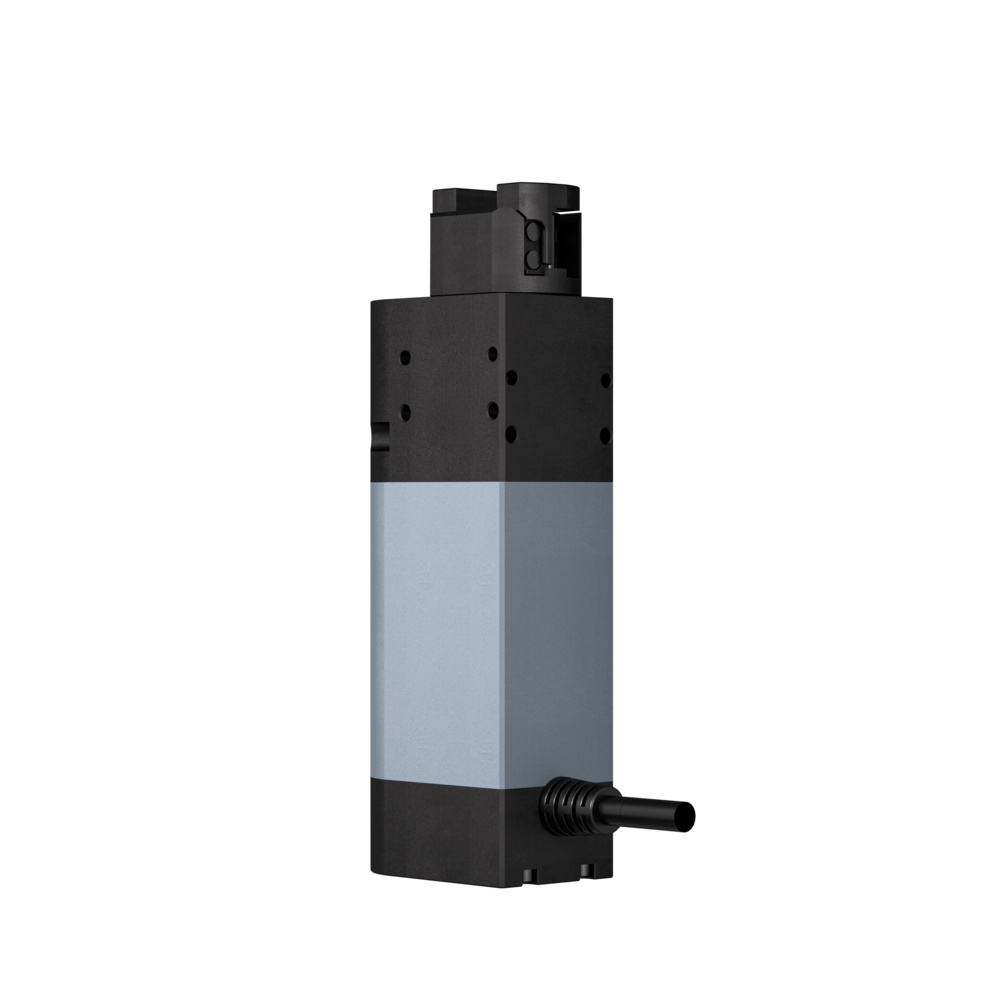

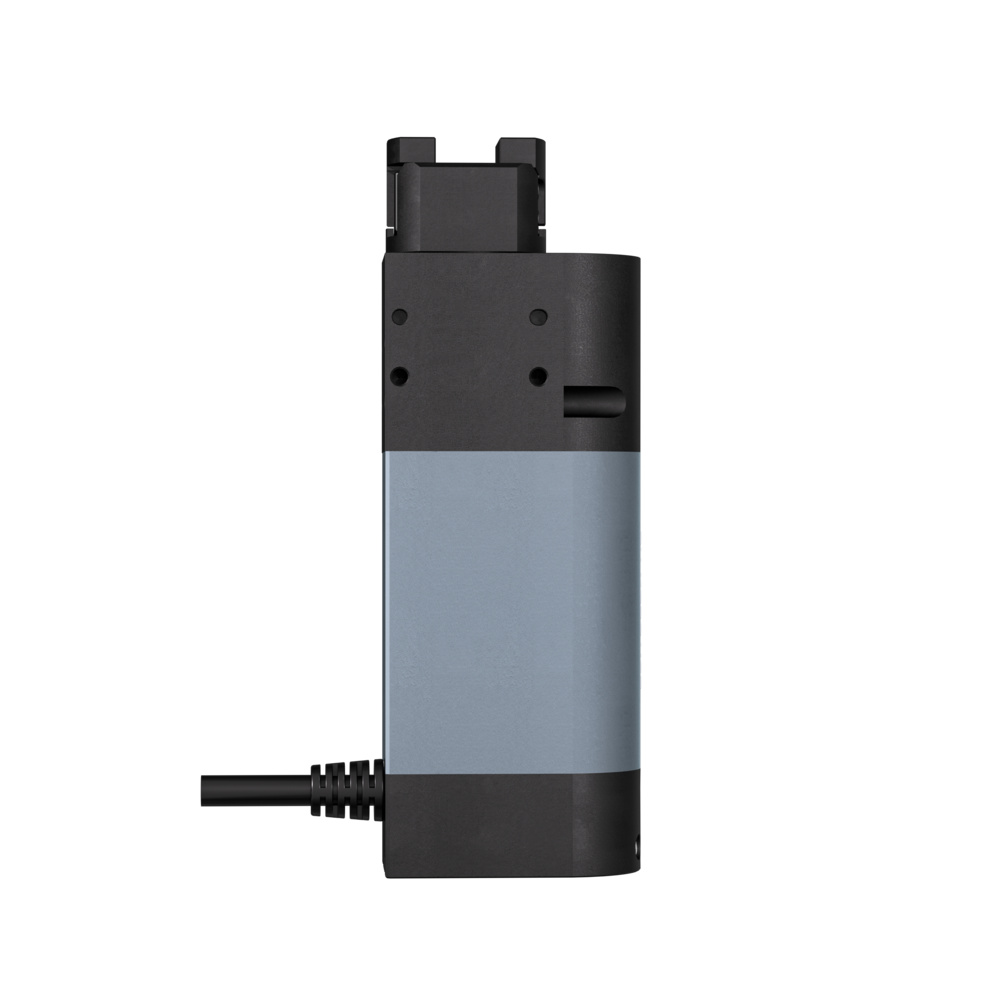

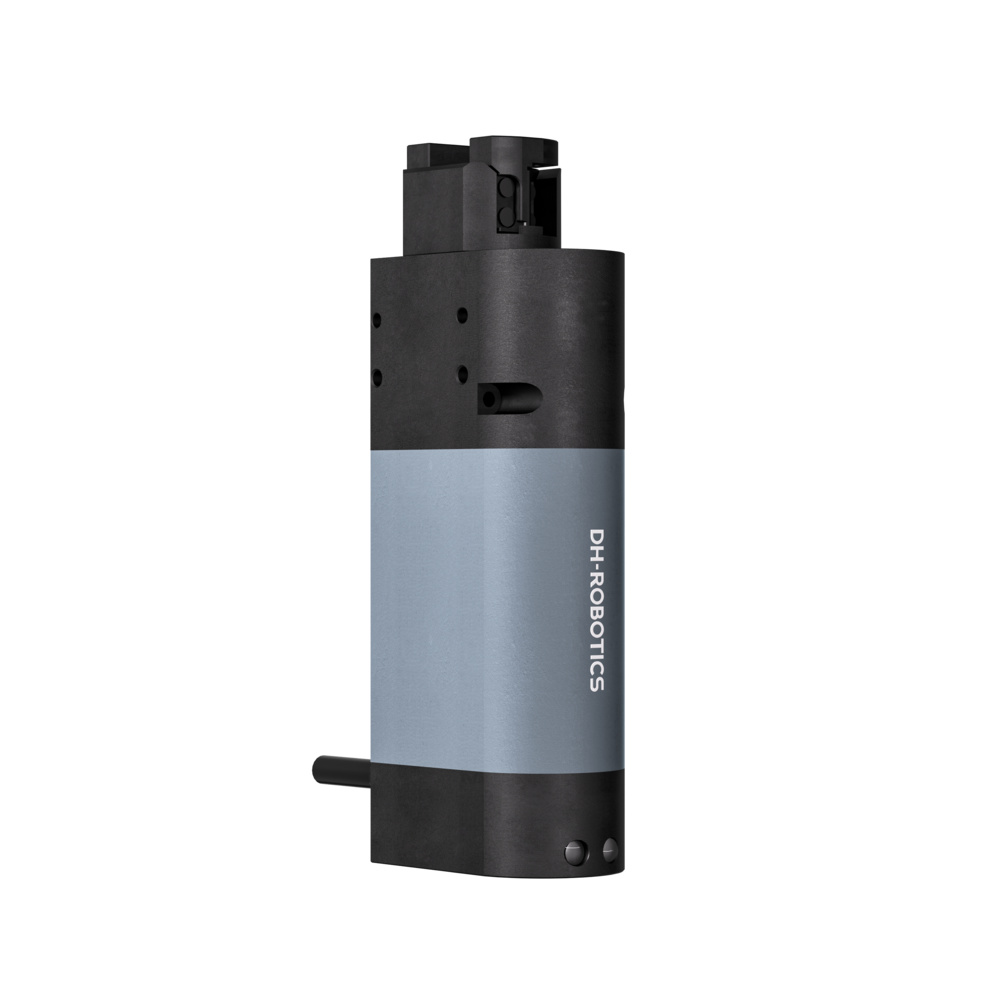

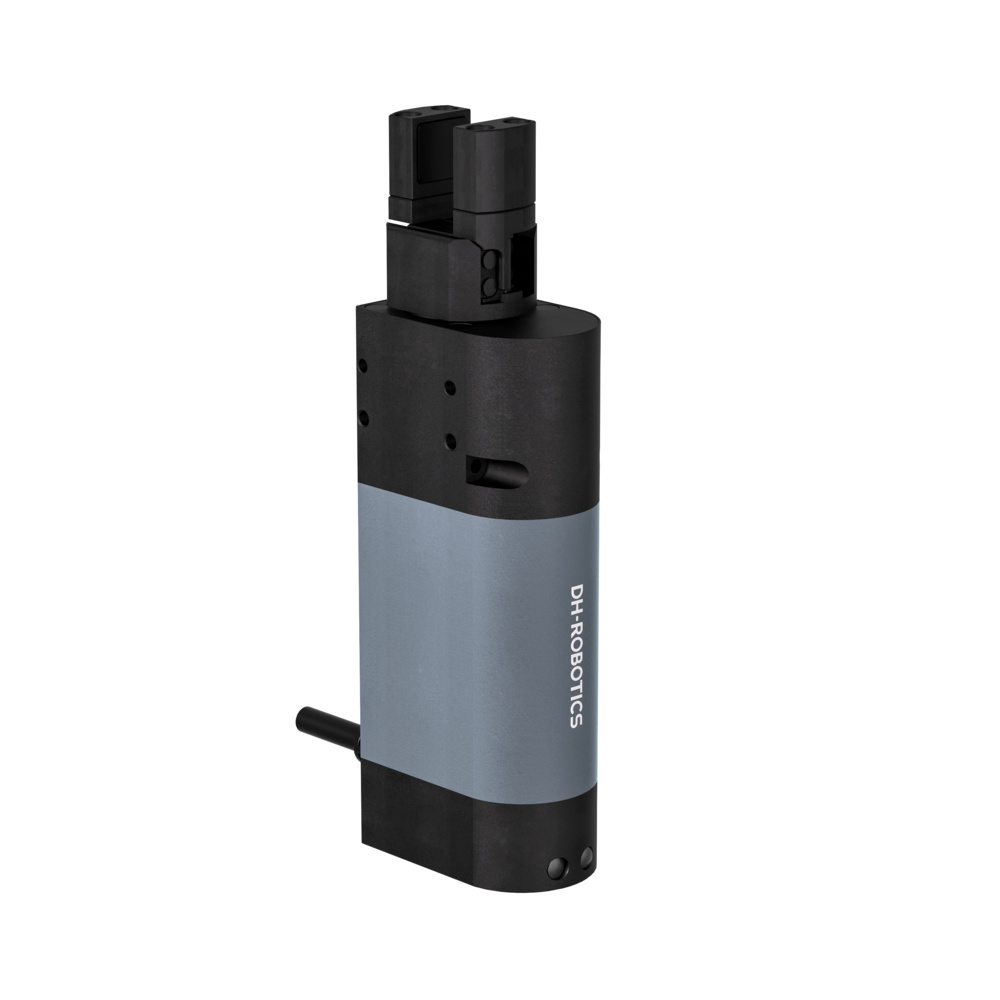

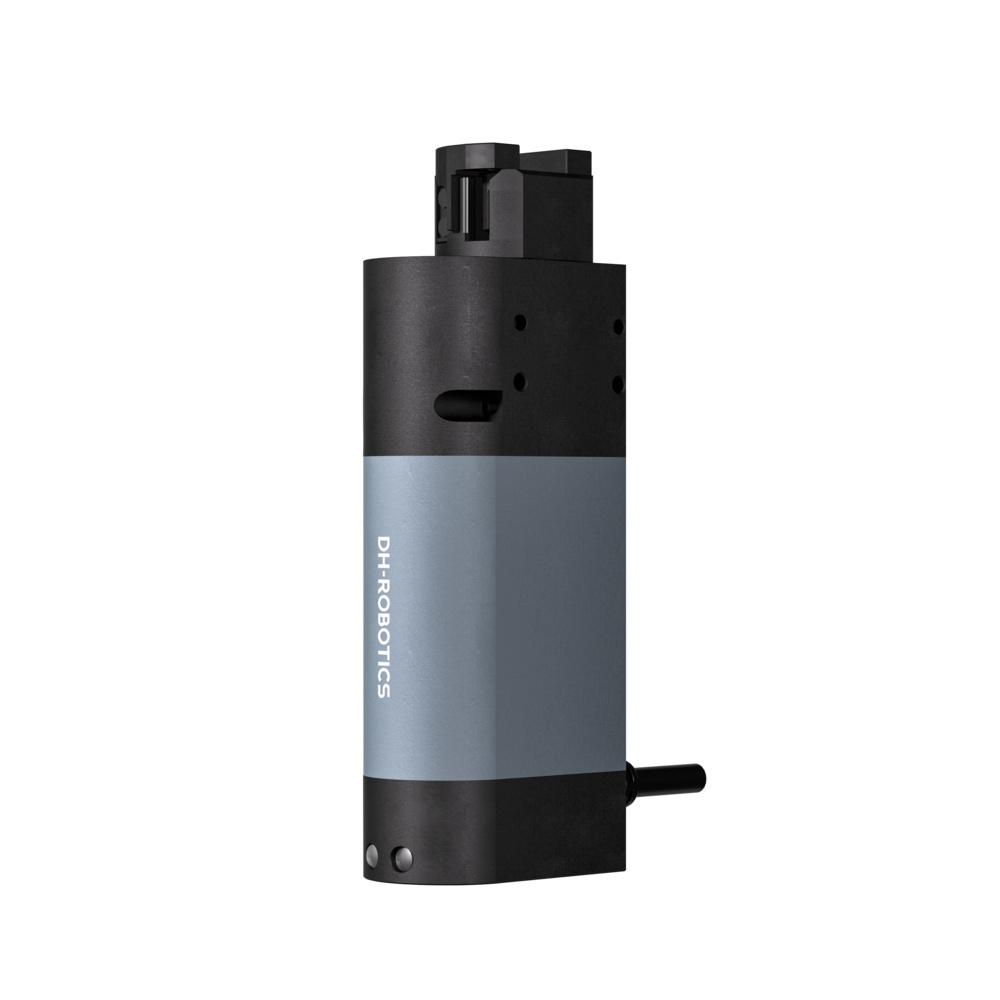

RGIC-35-12-O
RGD Series
Direct Drive Rotary Gripper
- Zero backlash | High repeatability
- Fast and Stable
- Integrated structure | Power-off protection
- Integrated design
- Adjustable parameters
- Intelligent feedback
- Replaceable Fingertip
- IP40
- CE certification
- FCC certification
- RoHS certification
€ 1.250,00 excl. VAT
Specifications
Main Specifications
-
Gripping force (per jaw) 13-35 N
-
Stroke 12 mm
-
Rated torque 0.2 N·m
-
Peak torque 0.5 N·m
-
Rotary range Infinite rotating
-
Recommended workpiece weight 0.5 kg
-
Max. rotation speed 2160 deg/s
-
Repeat accuracy (swiveling) ± 0.05 deg
-
Repeat accuracy (position) ± 0.02 mm
-
Opening/Closing time 0.6 s / 0.6 s
-
Weight 0.64 kg
-
Size 150 mm x 53 mm x 34 mm
-
Communication interface Standard: Modbus RTU (RS485), Digital I/OOptional: TCP/IP, CAN2.0A, PROFINET, EtherCAT
-
Rated voltage 24 V DC ± 10%
-
Rated current 1.7 A
-
Peak current 2.5 A
Environment & Certification
-
IP class IP 20
-
Recommended environment 0~40°C, under 85% RH
-
Certification CE，FCC，RoHS
